Product Image
Vertical
Product Information
Product Variations
| Product No. | Material | Internally Threaded Hub Diameter | Box Qty. | Approx. Box Wt. (lbs.) | Documents | |
|---|---|---|---|---|---|---|
| A158R | Aluminum | 1/2" | 10 | 1.25 |
|
|
| A158R-5/8 | Aluminum | 5/8" | 10 | 1.25 |
|
|
| 157 | Brass | 3/8" | 10 | 2.5 |
|
|
| 158 | Brass | 1/2" | 10 | 2.5 |
|
|
| 158-5/8 | Brass | 5/8" | 10 | 2.5 |
|
|
| 157T | Tinned Brass | 3/8" | 10 | 2.5 |
|
|
| 158T | Tinned Brass | 1/2" | 10 | 2.5 |
|
|
| 158-5/8T | Tinned Brass | 5/8" | 10 | 2.5 |
|

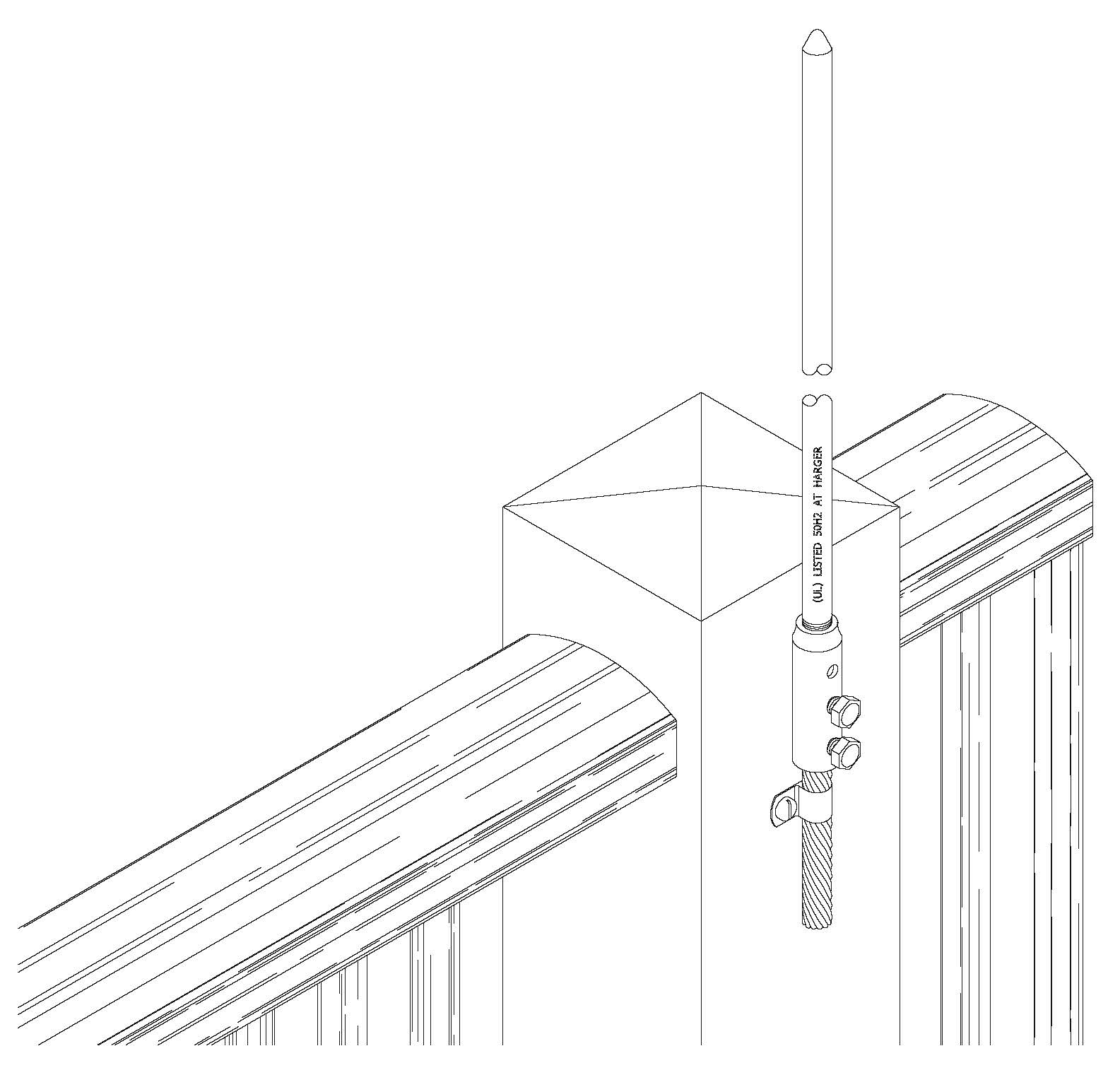

- 2-1/2" long, vertical base connector features 1/4" mounting hole and two stainless steel cap screws to assure a good electrical connection.
- For all standard cables up to 1/2" in diameter. #A158R and #A158R-5/8 fit aluminum cables up to .59" diameter.
