Parapet Base Extensions
Product Information
Product Variations

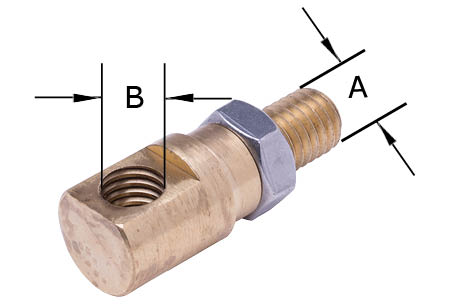

| Product No. | Material | Base Thread Diameter (A) | Air Terminal Threaded Diameter (B) | Offset Clearance (C) | Documents | |
|---|---|---|---|---|---|---|
| APBE2 | Aluminum | 1/2" | 1/2" | 2" |
|
|
| APBE2-5/8 | Aluminum | 1/2" | 5/8" | 2" |
|
|
| APBE2-5/8X5/8 | Aluminum | 5/8" | 5/8" | 2" |
|
|
| APBE3 | Aluminum | 1/2" | 1/2" | 3" |
|
|
| APBE3-5/8X5/8 | Aluminum | 5/8" | 5/8" | 3" |
|
|
| BPBE2-3/8X3/8 | Copper | 3/8" | 3/8" | 2" |
|
|
| BPBE2-3/8 | Copper | 1/2" | 3/8" | 2" |
|
|
| BPBE2 | Copper | 1/2" | 1/2" | 2" |
|
|
| BPBE2-5/8X5/8 | Copper | 5/8" | 5/8" | 2" |
|
|
| BPBE3-3/8X3/8 | Copper | 3/8" | 3/8" | 3" |
|
|
| BPBE3-3/8 | Copper | 1/2" | 3/8" | 3" |
|
|
| BPBE3 | Copper | 1/2" | 1/2" | 3" |
|
|
| BPBE3-5/8X5/8 | Copper | 5/8" | 5/8" | 3" |
|

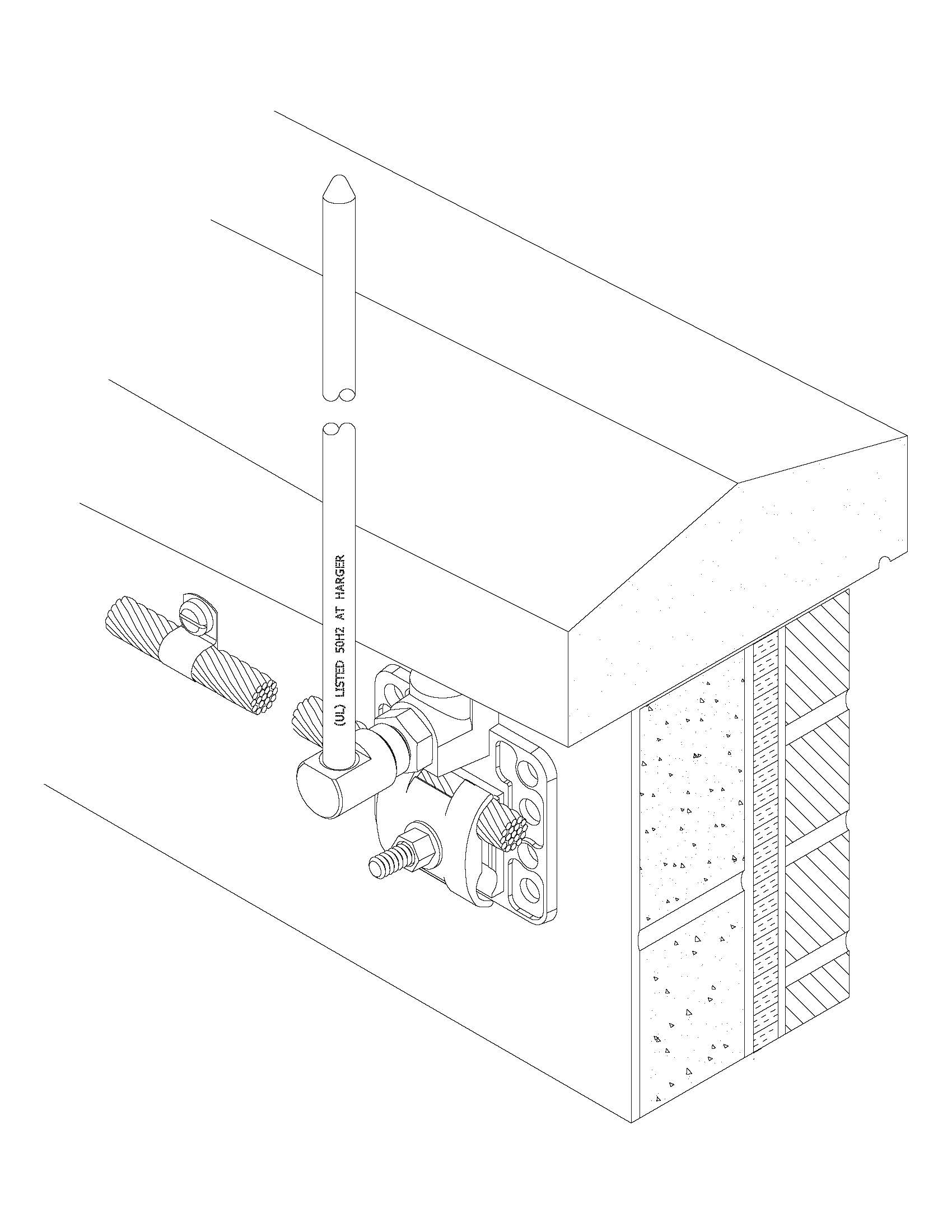

• Used when mounting air terminal bases under copings up to a 2" or 3" overhang.

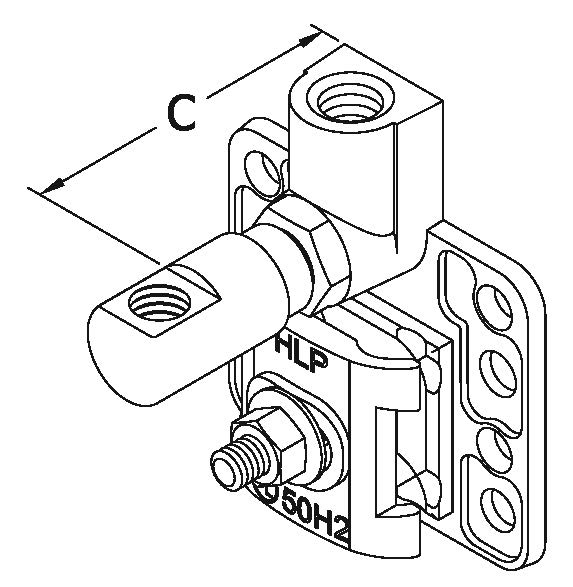

• Provides a 2" or 3" extension (measured from inside of air terminal to parapet wall).
• Manufactured from highly conductive copper or aluminum alloys.
• Stainless steel jam nut provides for proper positioning of air terminal.
• Available electro-tin plated. When ordering, add prefix T to part number.
