CGCR Series

Cable to Cable / Ground Rod / Reinforcing Steel

Product Variations

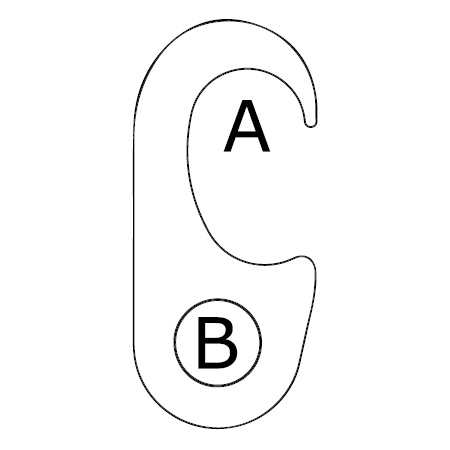

Product No. Run(A) Tap(B) Die Index No. of Crimps Documents
CGCR2504 1/0 Str. - 250 MCM, 1/2" - 5/8" Rod, #3 - #4 Reinforcing Steel #4 Sol. - #2 Str. U997 1
Customer Drawing
Technical Data Sheet
CGCR2501/0 1/0 Str. - 250 MCM, 1/2" - 5/8" Rod, #3 - #4 Reinforcing Steel 1/0 Str. - 2/0 Str. U997 1
Customer Drawing
Technical Data Sheet
CGCR2503/0 1/0 Str. - 250 MCM, 1/2" - 5/8" Rod, #3 - #4 Reinforcing Steel 3/0 Str. - 250 MCM U997 1
Customer Drawing
Technical Data Sheet
CGCR5004 250 MCM - 500 MCM, 5/8" - 3/4" Rod, #5 - #6 Reinforcing Steel #4 Sol - #2 Str. U998 1
Customer Drawing
Technical Data Sheet
CGCR5001/0 250 MCM - 500 MCM, 5/8" - 1/2" Rod, #5 - #6 Reinforcing Steel 1/0 Str. - 2/0 Str. U998 1
Customer Drawing
Technical Data Sheet
CGCR5003/0 250 MCM - 500 MCM, 5/8" - 3/4" Rod, #5 - #6 Reinforcing Steel 3/0 Str. - 250 MCM U998 1
Customer Drawing
Technical Data Sheet

• Add suffix “-A” for factory applied antioxidant
• Add prefix “T-” for tinned
• CGCR2504: When crimping two conductors, Tap is #2 Str. only

• CGCR2503/0: minimum Run must be 2/0 Str. when using 3/0 Tap



Installation Instructions

• A 12-ton tool is required for these connections
