2-Bolt Parallel Connectors
Product Information
Product Variations
| Product No. | Material | Box Qty. | Approx. Box Wt. (lbs.) | Documents | |
|---|---|---|---|---|---|
| A204 | Aluminum | 10 | 2.5 | ||
| 204 | Bronze | 10 | 4.5 |
|
|
| 204T | Tinned Bronze | 10 | 4.5 |
|
• Approximately 2" x 1-3/4" two piece connector used for splicing cables and rods.
• Accommodates all standard size Class I and Class II conductors up to .53" diameter.
• Accommodates ground cable sizes ranging from #6 AWG up to 250 MCM.
• 5/16" x 1-3/4" stainless steel carriage bolts, flat washers and nuts included.
• Recommended installation tool - 1/2" deep socket wrench, end wrench or nut driver.

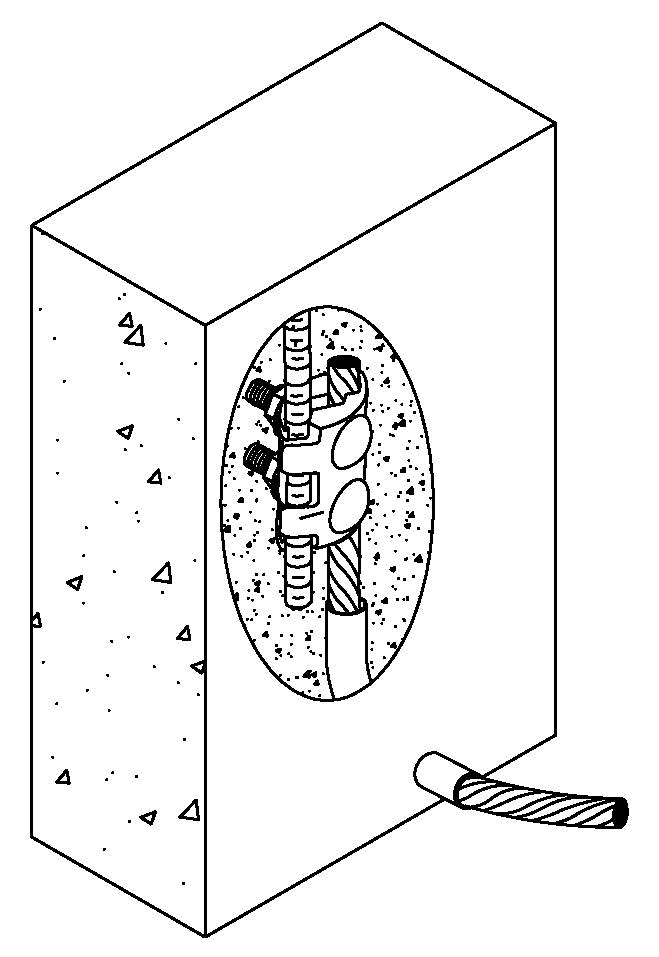

• #204 & #204T are suitable for direct burial in earth & concrete.
