U219 Series
Horizontal to Flat Surface Thru-Roof
Product Information
Product Variations
| Product No. | Riser Bar Length | Upper Connection Material | Lower Connection Material | Documents | |
|---|---|---|---|---|---|
| U219ATR-6 | 6" | Aluminum | Aluminum |
|
|
| U219ATR-12 | 12" | Aluminum | Aluminum |
|
|
| U219BMTR-6 | 6" | Aluminum | Bronze |
|
|
| U219BMTR-12 | 12" | Aluminum | Bronze |
|
|
| U219TR-6 | 6" | Bronze | Bronze |
|
|
| U219TR-12 | 12" | Bronze | Bronze |
|

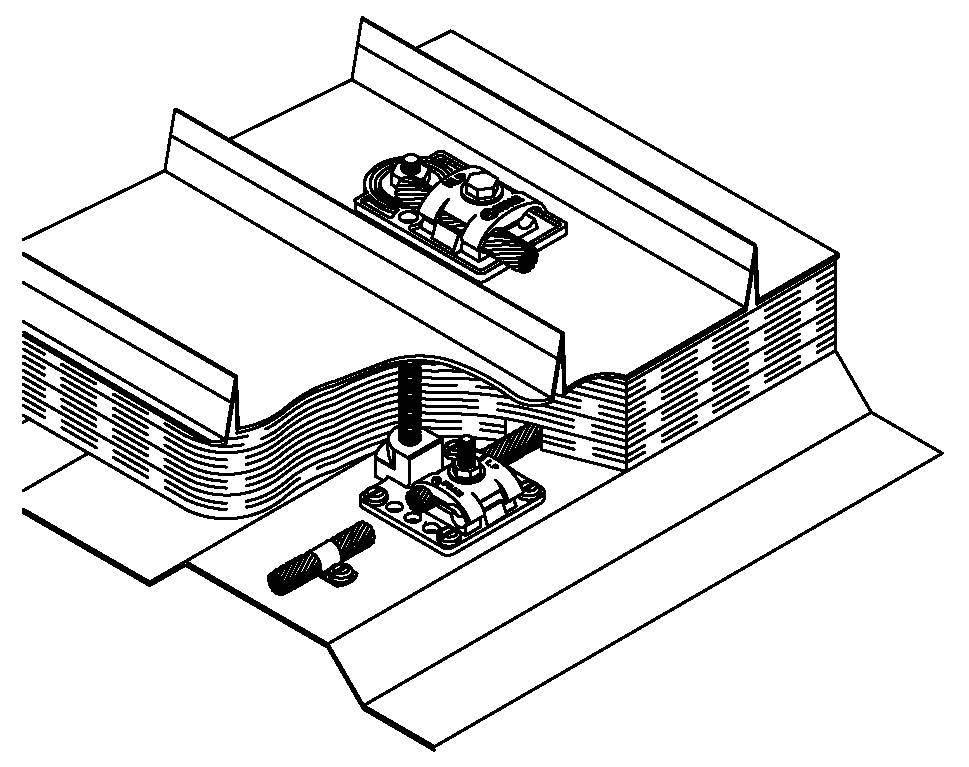

• Thru-roof or thru-wall connectors are used when making roof or wall penetrations because of the difficulty of sealing stranded lightning conductor cables.
• Features include 1/2" diameter threaded rod, neoprene sealing washers and stainless steel jam nuts to assure a watertight installation.
• Fits all main size conductors up to 9/16" diameter.
• Other sizes available. Please contact factory for more information.
