Tripod Braces - Adhesive Feet

Product Information

Product Variations

Product No. Length Max. Air Terminal Supported Style Feet Material Documents
A140-18AD 18" 24" Adhesive Aluminum
Customer Drawing
Technical Data Sheet
A140-24AD 24" 36" Adhesive Aluminum
Customer Drawing
Technical Data Sheet
A140-36AD 36" 60" Adhesive Aluminum
Customer Drawing
Technical Data Sheet
A140-48AD 48" 72" Adhesive Aluminum
Customer Drawing
Technical Data Sheet
A140-60AD 60" 84" Adhesive Aluminum
Customer Drawing
140-18AD 18" 24" Adhesive Copper
Customer Drawing
Technical Data Sheet
140-24AD 24" 36" Adhesive Copper
Customer Drawing
Technical Data Sheet
140-36AD 36" 60" Adhesive Copper
Customer Drawing
Technical Data Sheet
140-48AD 48" 72" Adhesive Copper
Customer Drawing
Technical Data Sheet
140-60AD 60" 84" Adhesive Copper
Customer Drawing

• Tripod braces are used for the support of air terminals that exceed 24" in length.
• Constructed of 1/4" steel rod with welded joints and a zinc/ultraseal plating.
• Adhesive feet material for mounting to roofing membranes or similar surfaces where penetrations cannot be made.

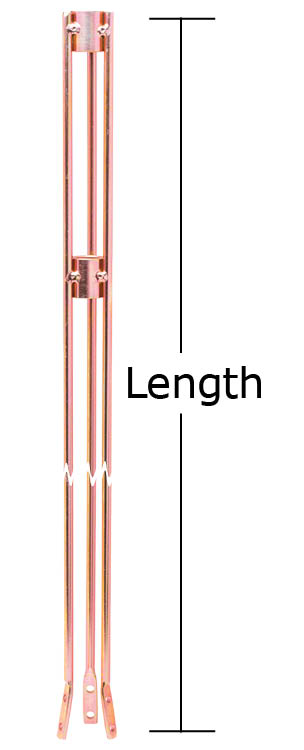

• Lengths given are prior to installation.
