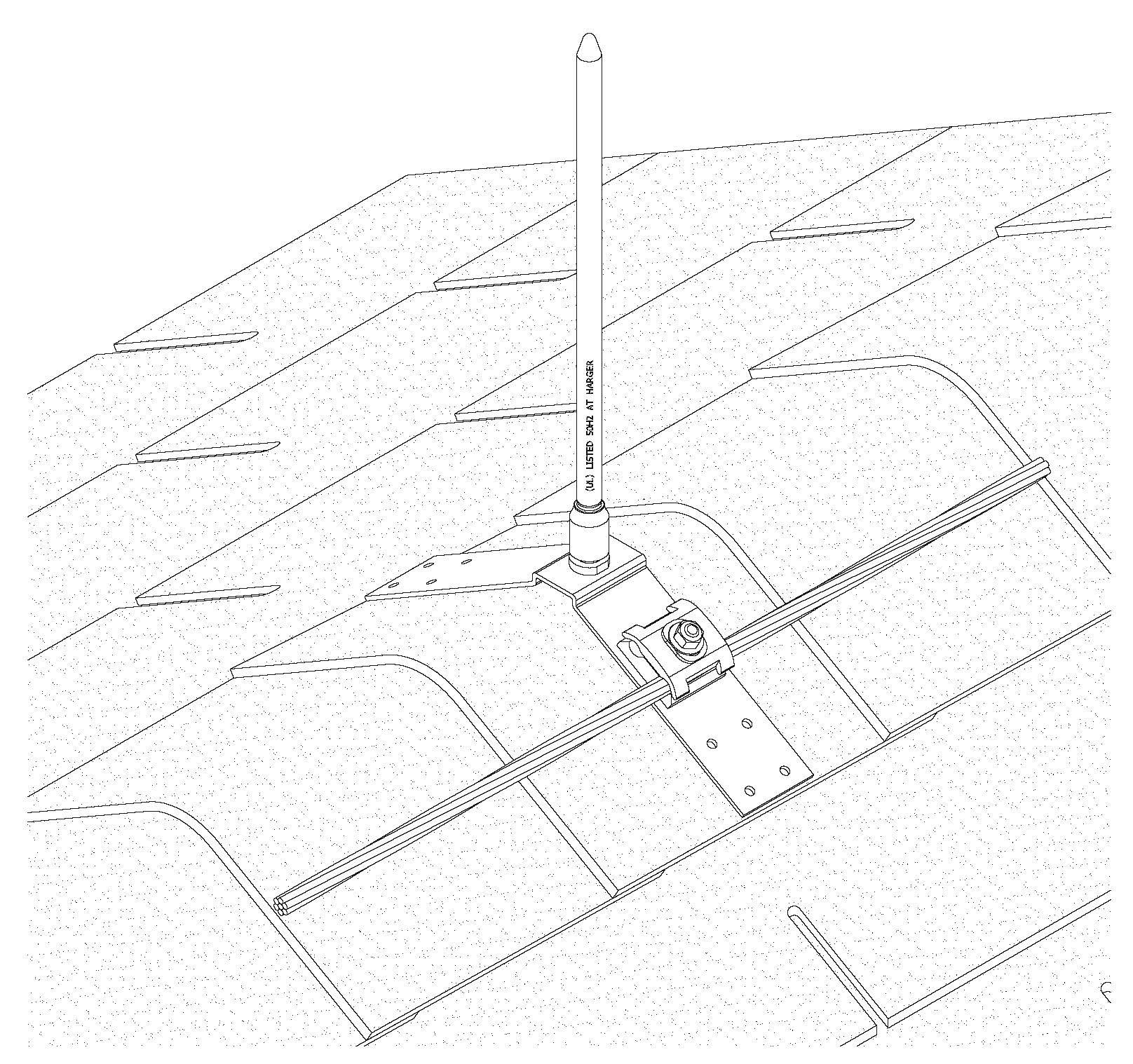

Ridge Saddle
Product Information
Product Variations
| Product No. | Material | Internally Threaded Hub Diameter | Externally Threaded Hub Diameter | Length | Box Qty. | Approx. Box Wt. (lbs.) | Documents | |
|---|---|---|---|---|---|---|---|---|
| ALRS6.75 | Aluminum | 1/2" | N/A | 6-3/4" | 10 | 5 |
|
|
| A160 | Aluminum | 1/2" | N/A | 12" | 10 | 10 |
|
|
| A160-5/8 | Aluminum | 5/8" | N/A | 12" | 10 | 4.5 | ||
| CURS6.75 | Bronze | 3/8" | 5/8" | 6-3/4" | 10 | 10 |
|
|
| 160 | Bronze | 3/8" | 5/8" | 12" | 10 | 10 |
|
|
| 160T | Tinned Bronze | 3/8" | 5/8" | 12" | 10 | 10 |
|
• 2" x 6-3/4" or 2" x 12" base fits easily to most any surface.
• Accepts all Class I & Class II conductors.
Technical Notes
• May required air terminal adapter.
