Chimney Flue
Product Information
Product Variations
| Product No. | Material | Internally Threaded Hub Diameter | Maximum Flange Thickness | Box Qty. | Approx. Box Wt. (lbs.) | Documents | |
|---|---|---|---|---|---|---|---|
| AFB1-1/2 | Aluminum | 1/2" | 1" | 5 | 2 |
|
|
| AFB1-5/8 | Aluminum | 5/8" | 1" | 5 | 2 |
|
|
| CFB1.5 | Tinned Bronze | 3/8" | 1-1/2" | 5 | 5 |
|
|
| CFB2.25 | Tinned Bronze | 3/8" | 2-1/4" | 5 | 6.25 |
|
• Accepts all Class I & Class II conductors.

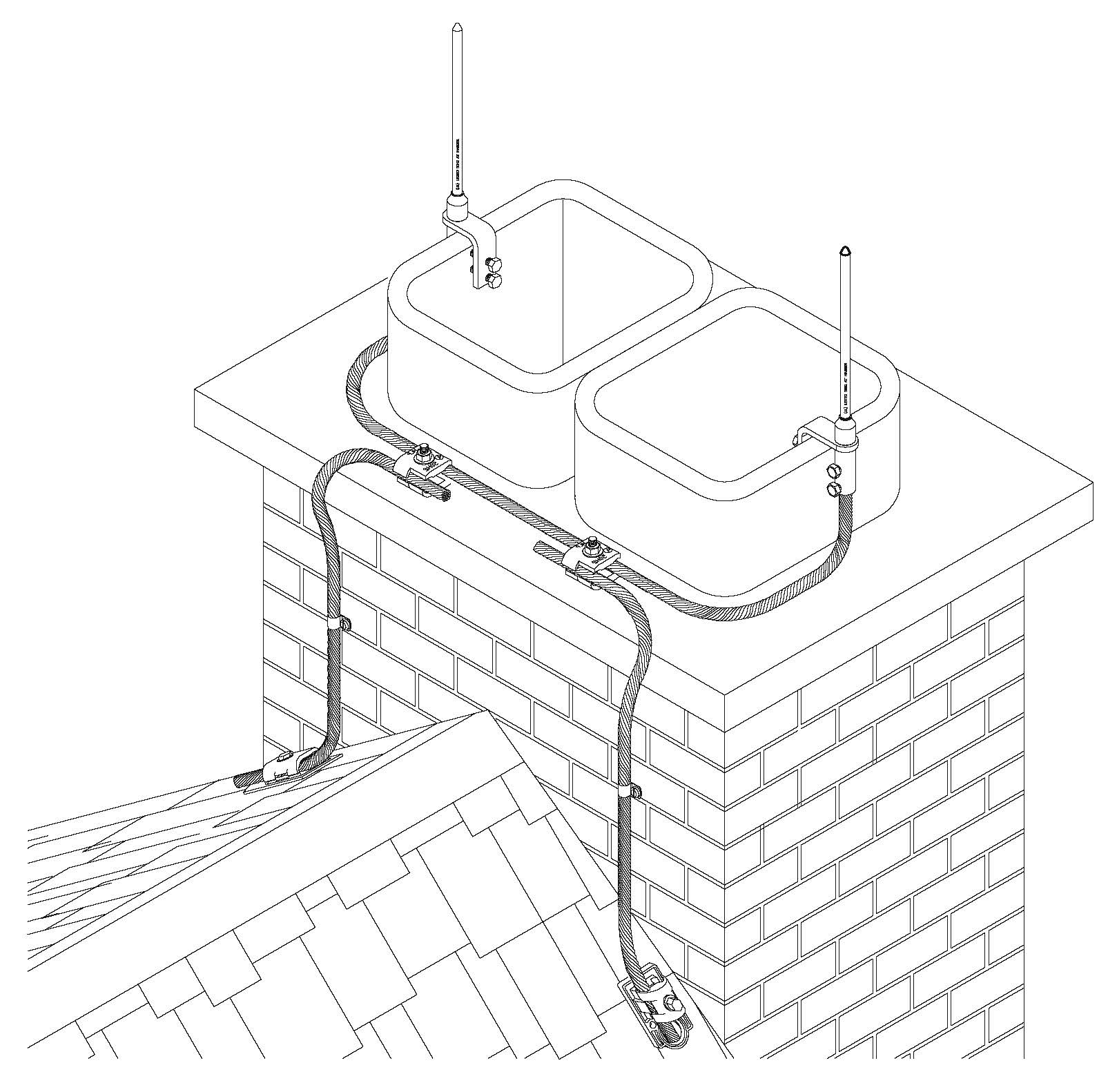

• Used when protecting chimneys from direct lightning strikes.
• Other sizes available. Please contact factory for more information.
