Product Image

230V Series

Vertical Base Thru-Roof

Product Information

Product Variations

Product No. Upper Connection Material Lower Connection Material Riser Bar Length Documents
230VBM12 Aluminum Brass 12"
Customer Drawing
Technical Data Sheet
230VBM18 Aluminum Brass 18"
Customer Drawing
Technical Data Sheet
230VBM24 Aluminum Brass 24"
Customer Drawing
Technical Data Sheet
230V12 Bronze Brass 12"
Customer Drawing
Technical Data Sheet
230V18 Bronze Brass 18"
Customer Drawing
Technical Data Sheet
230V24 Bronze Brass 24"
Customer Drawing
Technical Data Sheet

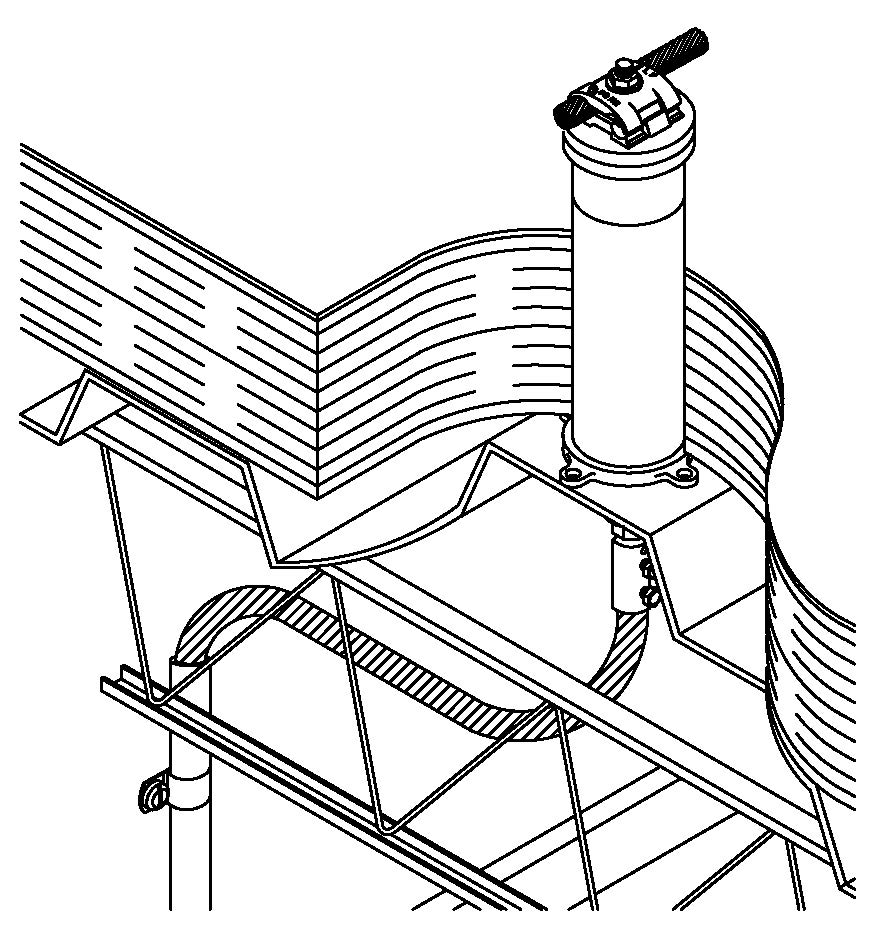

• No. 230 series thru-roof assemblies offer superior strength and are compatible with a wide range of roofing systems.
• Assemblies feature a 2-3/8" O.D. PVC tubing support.
• The support not only provides additional strength to protect against breakage, but also presents a smooth, rigid surface for the installation of various types of membrane boot flashings.
• Dual cable connector accommodates two main size conductors up to 9/16" diameter.
• Also available in aluminum and other lengths are available on special order. Please contact factory for more information.
