Product Image
230H Series
Horizontal Base Thru-Roof
Product Information
Product Variations
| Product No. | Upper Connection Material | Lower Connection Material | Riser Bar Length | Documents | |
|---|---|---|---|---|---|
| 230HBM12 | Aluminum | Bronze | 12" |
|
|
| 230HBM18 | Aluminum | Bronze | 18" |
|
|
| 230HBM24 | Aluminum | Bronze | 24" |
|
|
| 230H12 | Bronze | Bronze | 12" |
|
|
| 230H18 | Bronze | Bronze | 18" |
|
|
| 230H24 | Bronze | Bronze | 24" |
|

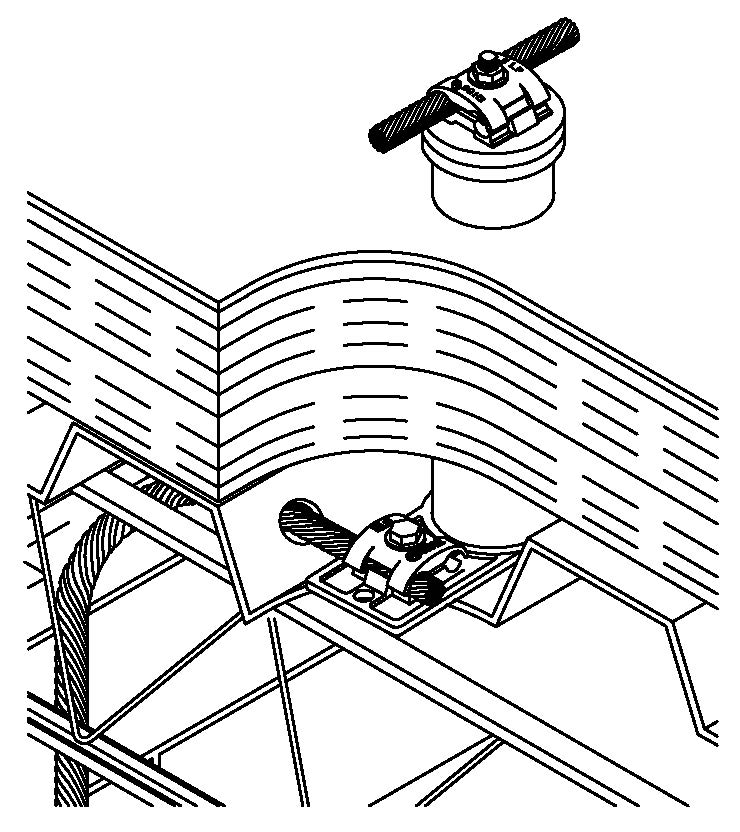

• No. 230 series thru-roof assemblies offer superior strength and are compatible with a wide range of roofing systems.
• Assemblies feature a 2-3/8" O.D. PVC tubing support.
• The support not only provides additional strength to protect against breakage, but also presents a smooth, rigid surface for the installation of various types of membrane boot flashings.
• Dual cable connector accommodates two main size conductors up to 9/16" diameter.
• Also available in aluminum and other lengths are available on special order. Please contact factory for more information.
