226 Series
Right Angle to Right Angle Connection
Product Information
Product Variations
| Product No. | Connection 1 Material | Connection 2 Material | Riser Bar Length | Documents | |
|---|---|---|---|---|---|
| A2266 | Aluminum | Aluminum | 6" |
|
|
| A22612 | Aluminum | Aluminum | 12" |
|
|
| A22618 | Aluminum | Aluminum | 18" |
|
|
| 226BM6 | Aluminum | Bronze | 6" |
|
|
| 226BM12 | Aluminum | Bronze | 12" |
|
|
| 226BM18 | Aluminum | Bronze | 18" |
|
|
| 226-6 | Bronze | Bronze | 6" |
|
|
| 226-12 | Bronze | Bronze | 12" |
|
|
| 226-18 | Bronze | Bronze | 18" |
|

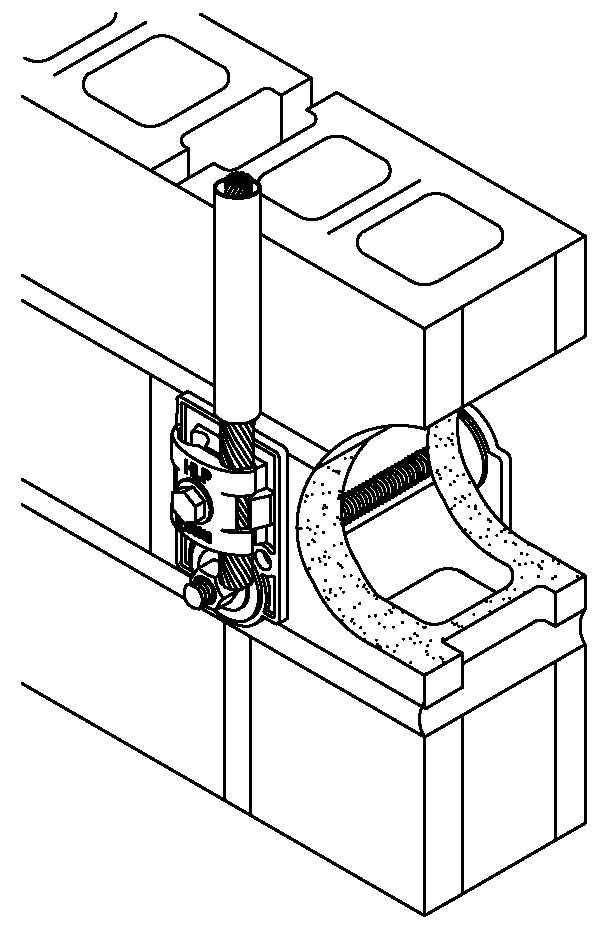

• Thru-roof or thru-wall connectors are used when making roof or wall penetrations because of the difficulty of sealing stranded lightning conductor cables.
• Features include 1/2" diameter threaded rod, neoprene sealing washers and stainless steel jam nuts to assure a watertight installation.
• Fits all main size conductors up to 9/16" diameter.
• Other configurations available. Please contact factory for more information.
