1-Bolt Bonding Connectors
Product Information
Product Variations
| Product No. | Material | Box Qty. | Approx. Box Wt. (lbs.) | Documents | |
|---|---|---|---|---|---|
| A208 | Aluminum | 10 | 1.25 | ||
| 208 | Bronze | 10 | 2.5 |
|
|
| 208T | Tinned Bronze | 10 | 2.5 |
|

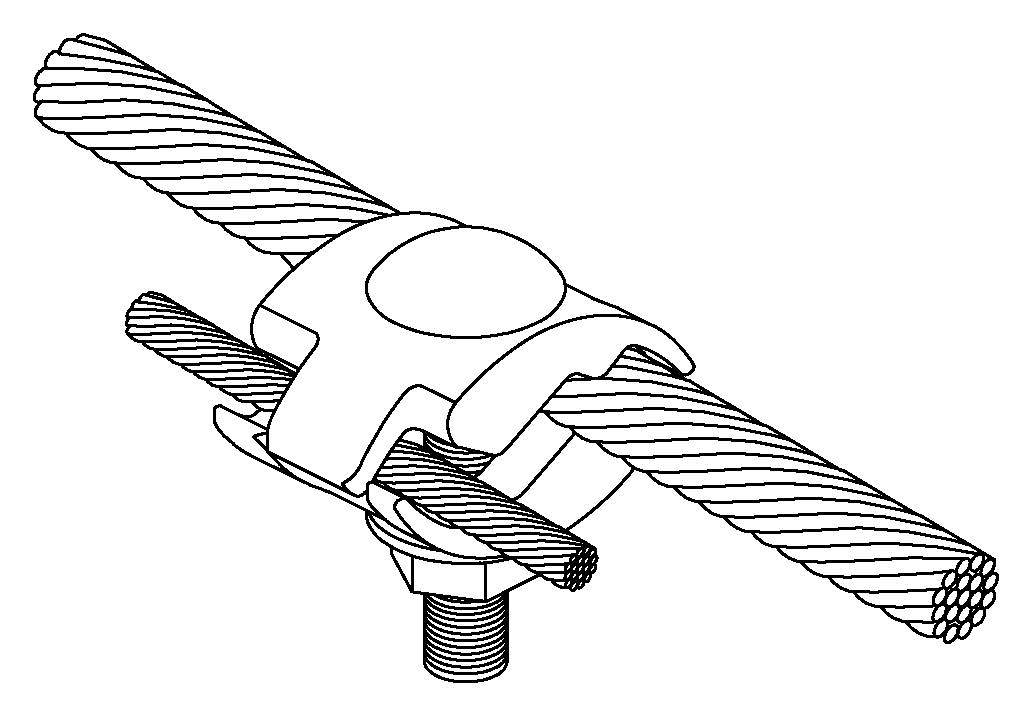

• Approximately 7/8" x 1-5/8" one bolt, two piece connector splices bonding conductor to all standard size Class I and Class II conductors
up to .56" diameter.
• Accommodates ground cable sizes ranging from #6 AWG through 4/0.
• 5/16" x 1-3/4" stainless steel carriage bolt, flat washer and nut included.
• Recommended installation tool - 1/2" deep socket wrench, end wrench or nut driver.
• #208 & #208T are suitable for direct burial in earth & concrete.
