Concealed Coping Bases

Product Information

Product Variations

Product No. Material Internal Threaded Hub Diameter Box Qty. Approx. Box Wt. (lbs.) Documents
ACCB12 Aluminum 1/2" 10 5.5
Customer Drawing
Technical Data Sheet
ACCB58 Aluminum 5/8" 10 5.5
Customer Drawing
Technical Data Sheet
CCCB38 Bronze 3/8" 10 18.1
Customer Drawing
Technical Data Sheet
CCCB12SS Bronze 1/2" 10 20
Customer Drawing

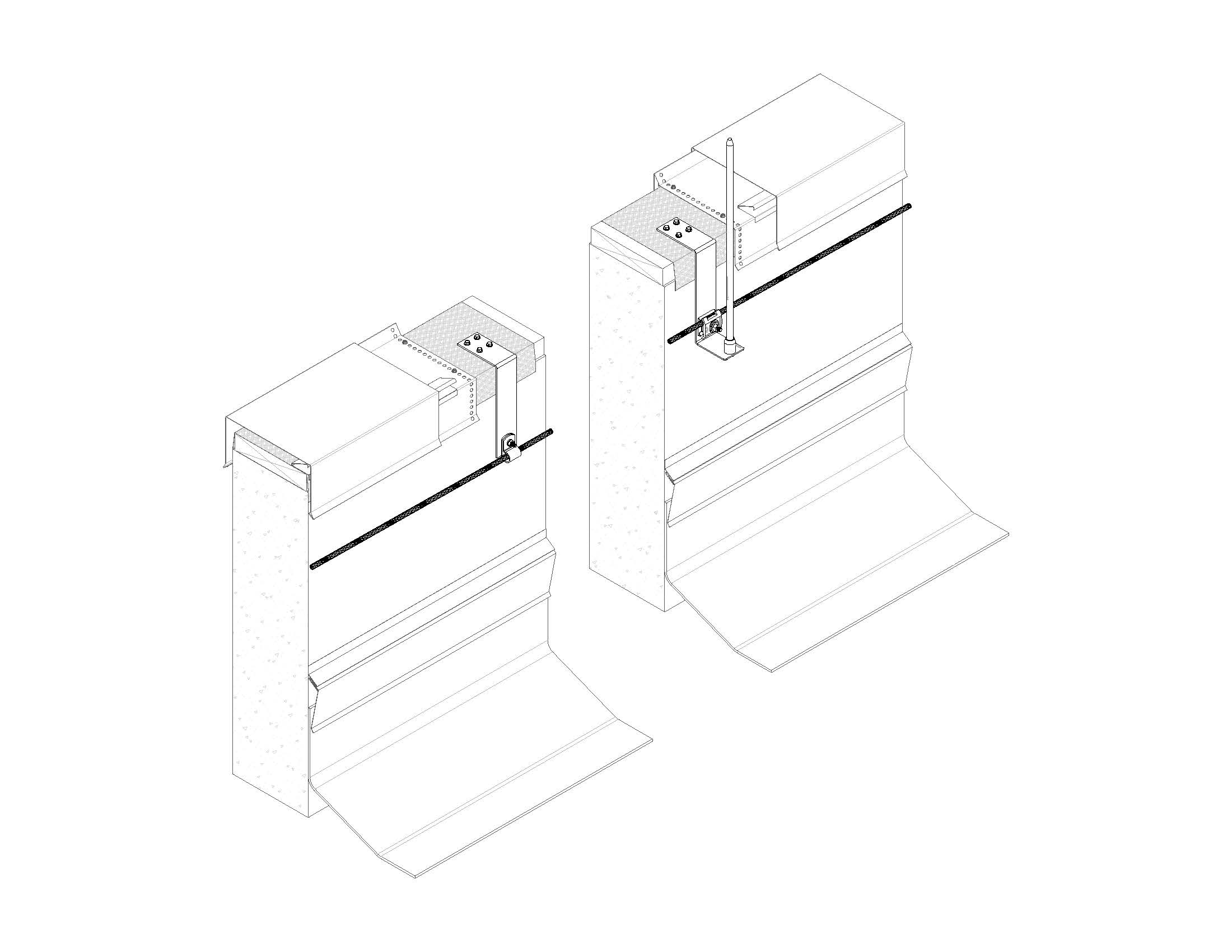

  • For installations where air terminals and conductors can't be mounted directly to copings
  • Installed prior to installation of coping
  • Accepts all Class I & Class II conductors
  • Parts ending in "SS" have a Stainless Steel bracket
  • Factor the drop below the final coping height when choosing air terminal length to maintain 10" compliance



Technical Notes
  • Patents pending on this product series
